Importing CODE V designs into OpticStudio

Updated: May 23, 2024
Current Release: V1.0.1.1

Authored By: Ethan Keeler

Downloads

Converter Download
Note: This extension is only available for the Ansys version of OpticStudio.

Beta Notice

This extension is currently in beta release. There may be unexpected bugs or errors, and we encourage you to double check any converted designs. If you have any feedback or information to share with us about your conversions, please contact us at zemax.support@ansys.com. We would also be more than happy to review the Conversion Report with you to help you understand issues with the conversion. Please feel free to share this report (and if possible, the SEQ file) so that we can better understand any failures or limitations.

Introduction

OpticStudio provides an extension for importing CODE V designs. This extension is meant to replace and improve upon the legacy ZPL macro (CodeV to OpticStudio Converter.ZPL). To import a CODE V design, it must be saved as a text-based SEQ file. By reading the CODE V commands, line-by-line, the converter can recreate the design dynamically within OpticStudio. The extension also offers an interface to directly enter the commands, one-by-one, to build or modify a design. It is important to note that not all CODE V commands and capabilities are fully supported by the converter; we are continually improving the tool, but there are some limitations, and converted designs should be validated.

Downloading and installing the extension

You can download the Converter as a ZIP folder attached to this article. To install it, first close OpticStudio. Then simply extract the files in the attached ZIP into your Documents\Zemax\ZOS-API\Extensions folder. Make sure that the executable (‘CODE V Converter.exe’) is at the top level of this folder. Once you open OpticStudio, you will see the CODE V Converter as an option on the User Extension list.

Process to convert a design

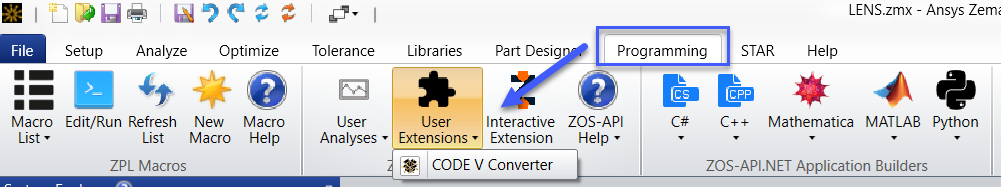

After exporting the CODE V design to a text-based SEQ file, you can access the extension on the Programming tab in OpticStudio:

After opening the extension, you will see the main GUI interface. To complete a conversion, simply navigate to the SEQ file and click Convert System. There are a few options available for the conversion:

  • The extension of the conversion now has a more detailed and formatted output HTML file. If Show Summary is checked, the HTML summary will open automatically when the conversion completes.
  • The Real-time Updates option will show changes in OpticStudio as the conversion executes. If this option is left unchecked, the imported system will be revealed after the conversion completes.
  • Normally during a conversion, the current system in OpticStudio will be deleted, and the SEQ commands will create a new system. However, if you have created an SEQ file with commands that you want to modify the current system (without first deleting it), then Append Commands will make changes to the current system.

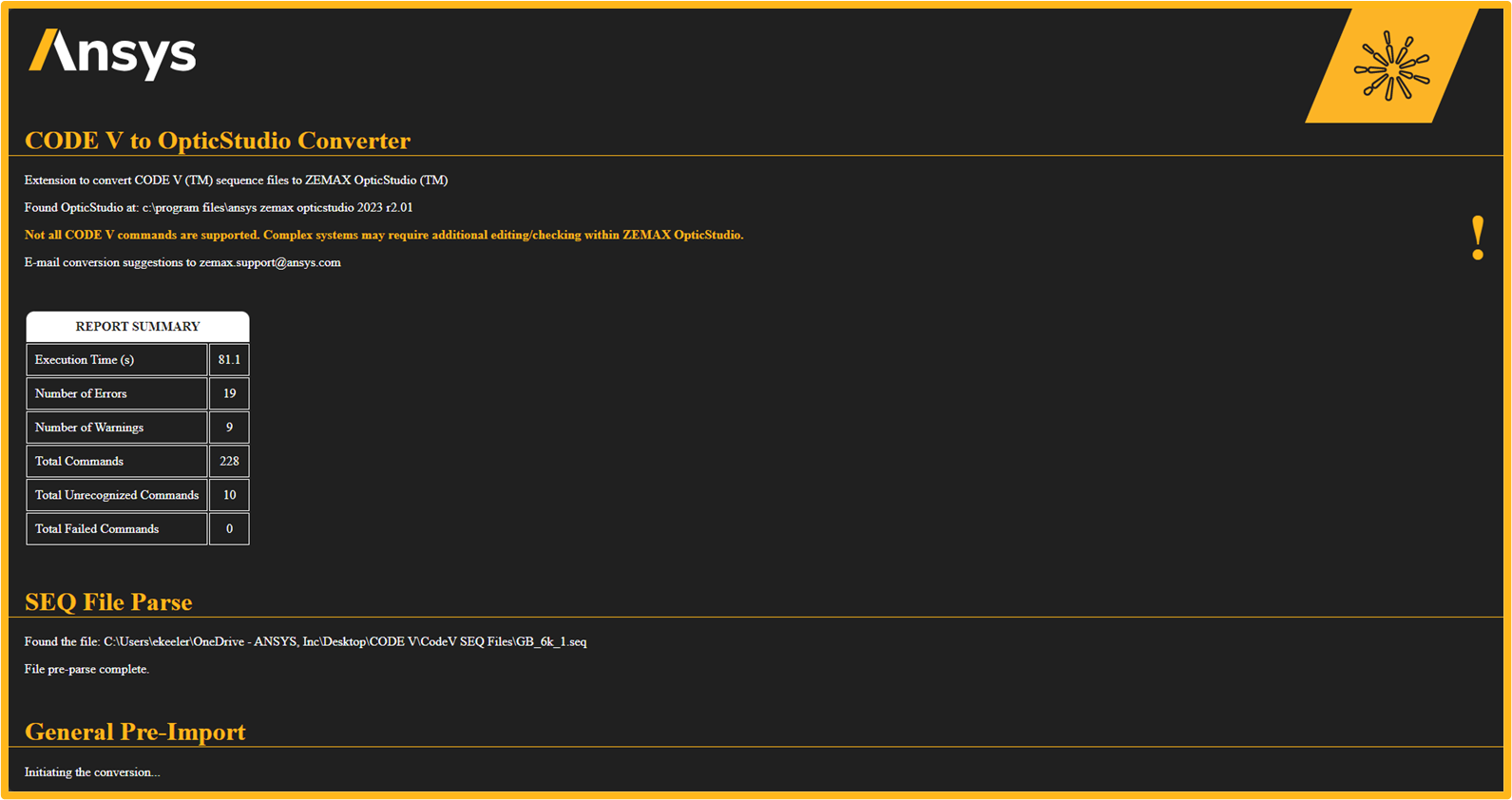

Once the conversion has completed, the tool will create a rich-text Conversion Report (shown below) as an HTML file output. In this report, it shows information about the conversion, as well as the errors and warnings logged during execution. At the start of the report, there is also a summary indicating metrics, including how many commands failed or the number of commands that were unrecognized.

Command line tool

If you would like to enter commands one-by-one to dynamically change the system, you can instead click the Command Line button. You will then see a command line GUI open. Here you can enter the commands and see how they affect the system. You will also see messages or errors listed in the Command History.



Appendix

Current list of supported commands

The following table shows the commands currently supported by the converter. Please note that even though the command is listed as supported, there may be command parameters or cases which are not supported. If you wish to share information with us about how a command should import or errors that you receive, please contact Zemax support at zemax.support@ansys.com.

GENERAL
!  Commented out line
LEN  Data initialization for a new lens
GO  Update system
RDM  Radius mode instead of curvature
SYSTEM EXPLORER
WL  Required wavelength in nm
WTW  Wavelength weight
REF  Reference wavelength number

TITLE, TIT  Lens system title
INI  Designer initials

EPD  Entrance pupil diameter
FNO  F/no of image space cone
NAO  Numerical aperture in object space

DIM  Override Dimensions
DDM  Default dimensions I-inch, C-cm, M-mm

XIM  Field: X Paraxial Image Height
YIM  Field: Y Paraxial Image Height
XAN  X Angle (degree) in object space
YAN  Y Angle (degrees) in object space
XOB  Field: X Object Height
YOB  Field: Y Object Height
XRI  Field: X Real Image Height
YRI  Field: Y Real Image Height
WTF  Field weight

VLX  Fraction entrance pupil radius clipped off -X
VLY  Fraction entrance pupil radius clipped off -Y
VUX  Fraction entrance pupil radius clipped off +X
VUY  Fraction entrance pupil radius clipped off +Y
LENS DATA EDITOR
S  Increment surface pointer
SO  Object plane surface definition
SI  Image plane surface definition
STO  Designate surf as a stop surface
INS  Surface Insertion (surface-specific format)
THI  Thickness insertion (surface-specific format)
RDY  Radius insertion (surface-specific format)

CUM  Mirror substrate backside curvature indicator
THM  Thickness of the mirror substrate

SPH  Spherical surface type
SPS

 Set surface type to special shapes

 ZRN – Standard Zernike

 QBF – Q-Type Asphere

 QCN – Q-Type Asphere

 ZFR – Fringe Zernike

SCO  Special Surface Operand

GLA  Glass insertion (surface-specific format)
GL1  Glass description, surface 1
GL2  Glass description, surface 2
RMD  Reflective/ Refractive mode command

CIR  Setting up aperture semi-diameter
ADX  Aperture decenter in X direction
ADY  Aperture decenter in Y direction
REX  Half-width of the rectangular aperture, X direction
REY  Half-width of the rectangular aperture, Y direction

SLB  Attach a label to a surface (in ZOS: Comment Column)

PIM  Solve for paraxial image distance

CCY  Surface curvature control (rotational symmetry)
THC  Thickness coupling group control
ADC  X axis tilt coupling group control
BDC  Y axis tilt coupling group control
CDC  Z axis tilt coupling group control
XDC  X decenter coupling group control
YDC  Y decenter coupling group control

CYL  Toroidal Surface
XTO  X Toroid Surface
YTO  Y Toroid Surface
ASP  Even Asphere Surface
A  4th order coefficient
B  6th order coefficient
C  8th order coefficient
D  10th order coefficient
E  12th order coefficient
F  14th order coefficient
G  16th order coefficient
H  18th order coefficient
J  20th order coefficient

CON  Conic surface type (typically followed by "K" operand)
K  Value of the conic constant (typically after operand "CON")

GRO  Grating order
GRS  Grating spacing
GRT  Grating surface type

DIF  Specifies a diffractive surface type (2-word command)
HOE  Holographic Surface
HV1  Type of 1st construction point
HV2  Type of 2nd construction point
HOR  Holographic diffraction order
HWL  Construction wavelength (hologram)
HX1  X-coordinate of the 1st construction point
HX2  X-coordinate of the 2nd construction point
HY1  Y-coordinate of the 1st construction point
HY2  Y-coordinate of the 2nd construction point
HZ1  Z-coordinate of the 1st construction point
HZ2  Z-coordinate of the 2nd construction point
HCT  Polynomial or hologram information
HCO  Aspheric phase
HCC  Hologram variable control

DIF  First part of 2-word operands (example DIF GRT)

RET  Solve to coordinate return: Orientation, XYZ
GLB  Global coordinate data reference
ADE  Tilt about X axis
BDE  Tilt about Y axis
CDE  Tilt about Z axis
XDE  X decenter
YDE  Y decenter of axis
ZDE  Z decenter of axis
BEN  Decenter and bend for mirrors
DAR  Decenter and return operand
LIBRARIES
PRV  Start of a Private Glass Catalog
PWL  Wavelengths in Private Glass Catalog
END  End of description of the Custom Glass Catalog

HAR  Hartmann dispersion formula
LAU  Laurent dispersion formula
GML  Glass Manufacturers Laurent dispersion formula
GMS  Glass Manufacturers Sellmeier dispersion formula
SLM  Sellmeier dispersion formula
CAU  Cauchy dispersion formula
MULTI-CONFIGURATION EDITOR
ZOO  Zoom position
TIT  Title (per configuration)

EPD  Entrance pupil diameter
FNO  F/# System Aperture value
CIR  Circular Aperture

ADE  Tilt about X axis
BDE  Tilt about Y axis
CDE  Tilt about Z axis
XDE  X-decenter
YDE  Y-decenter
ZDE  Z-Shift
THI  Thickness
CUY  Curvature of surface

WL  Wavelength (no support for config specific)
REF  Primary wavelength number
WTW  Wavelength weight

WTF  Field weight

XAN  X Angle (degree) in object space
XIM  Field: X Paraxial Image Height
XOB  Field: X Object Height
XRI  Field: X Real Image Height
YAN  Y Angle (degree) in object space
YIM  Field: Y Paraxial Image Height
YOB  Field: Y Object Height
YRI  Field: Y Real Image Height

GLA  Glass
GL1  Glass description, surface 1
GL2  Glass description, surface 2
RMD  Reflective/ Refractive mode command

VLX  Fraction entrance pupil radius clipped off -X
VLY  Fraction entrance pupil radius clipped off -Y
VUX  Fraction entrance pupil radius clipped off +X
VUY  Fraction entrance pupil radius clipped off +Y
